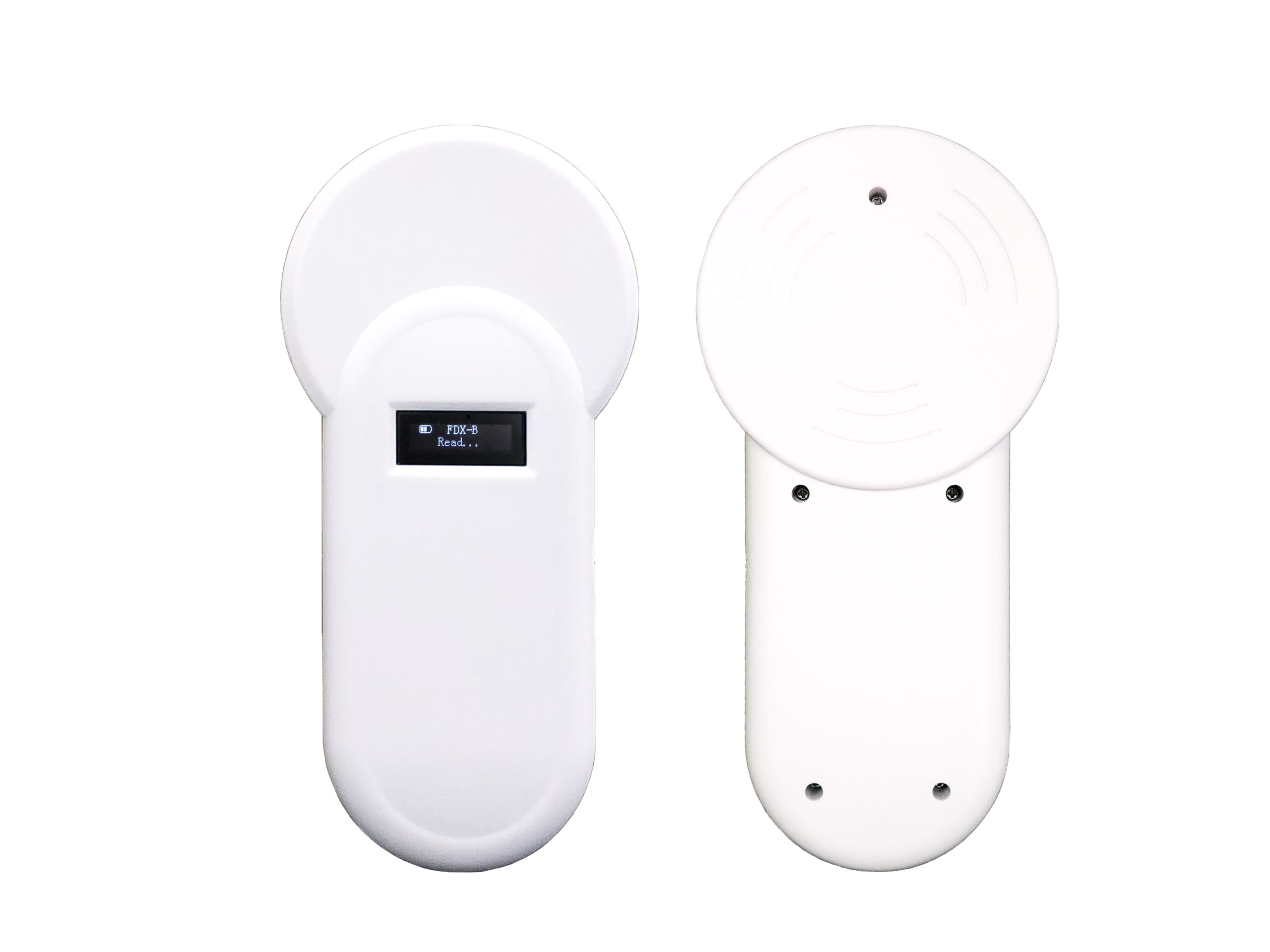

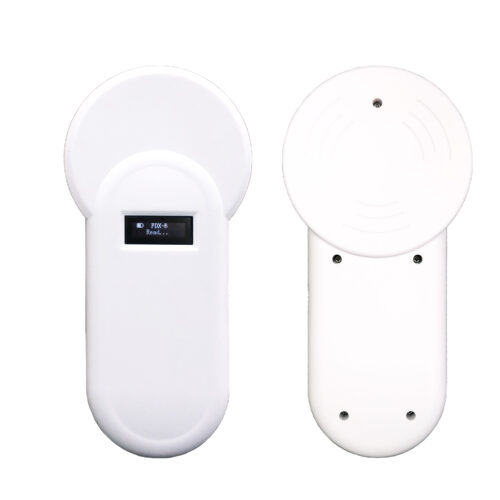

FDX-B Reader for Pet Microchip Identification
This handheld reader is designed for 134.2 kHz FDX-B animal microchips, one of the commonly used formats for electronic pet identification under ISO 11784/11785.
When the reader is brought near a compatible implanted transponder, it energizes the passive chip and retrieves its unique identification number. The ID can then be used for record checking, animal registration, or identification workflows.

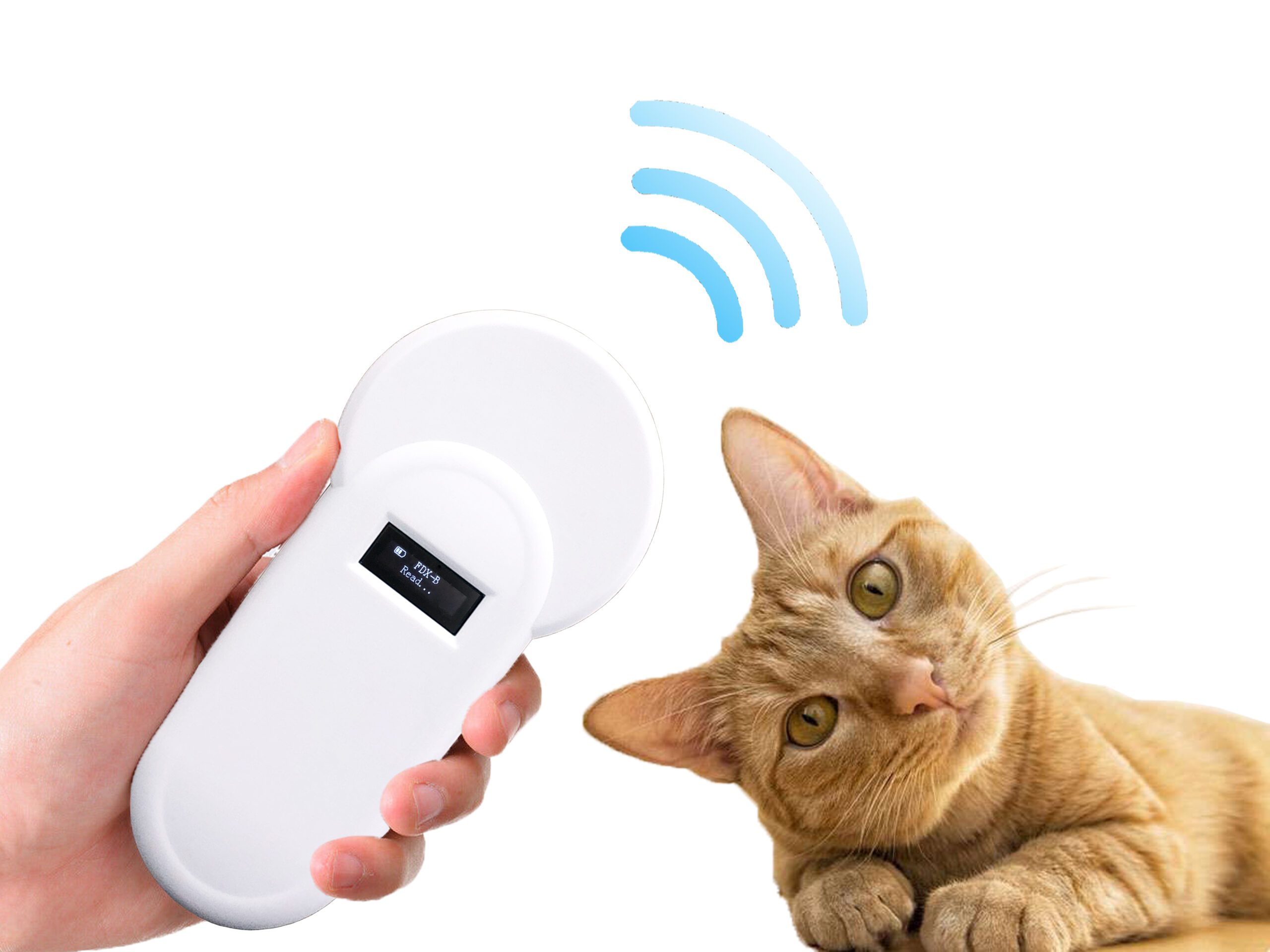

The portable design makes the reader suitable for dogs, cats, and other microchipped animals in both indoor and field environments.
Key Features and Technical Specifications
Βασικά χαρακτηριστικά
- Supports 2 kHz FDX-B animal microchips
- Compatible with ISO 11784 / ISO 11785
- Handheld design for portable animal identification
- Clear OLED or LCD display for viewing the microchip ID
- Rechargeable lithium battery with USB charging
- Audible and visual indication after a successful scan
- Suitable for pet, veterinary, shelter, breeder, and animal-control use
Τεχνικές προδιαγραφές
| Χαρακτηριστικό γνώρισμα | Προδιαγραφές |
| Τύπος προϊόντος | Handheld Pet Microchip Reader |
| Συχνότητα | 134,2 kHz |
| Πρότυπο ανάγνωσης | ISO 11784 / ISO 11785 |
| Primary Protocol | FDX-B |
| Μορφή ID | 15-digit animal identification number |
| Διαβάστε απόσταση | Up to 10–15 cm with compatible ear tag |
| Glass Microchip Read Distance | Approx. 5–8 cm |
| Εμφάνιση | OLED or LCD |
| Τροφοδοσία ρεύματος | Rechargeable lithium battery |
| Charging / Connection | USB |
| Θερμοκρασία λειτουργίας | -10°C έως +50°C |
| Θερμοκρασία αποθήκευσης | -30°C έως +70°C |
| Scan Indication | Beep and LED |
Read-range note: Actual reading distance depends on the transponder size, implantation depth, orientation, reader position, and surrounding environment.
134.2 kHz FDX-B Pet Microchip Reader Applications
Το FDX-B pet microchip reader can be used wherever implanted animal identification needs to be checked.
- Veterinary Clinics– verify a pet’s microchip ID during registration, examination, or treatment.
- Animal Shelters and Rescues– scan incoming animals and retrieve the ID needed for database checks.
- Animal Control– identify chipped dogs, cats, and other animals during field work.
- Breeders and Kennels– associate individual animals with breeding or ownership records.
- Pet Travel and Documentation– confirm the implanted microchip number when animal identification needs to be verified.
Συχνές ερωτήσεις για το 134.2 kHz FDX-B Pet Microchip Reader
What type of microchips can this reader detect?
It is designed primarily for 134.2 kHz FDX-B animal microchips compliant with ISO 11784/11785.
What information does the reader display?
The reader displays the unique microchip identification number.
Owner details, medical records, or registration information are normally stored in a separate database or animal-management system.
What is the reading distance?
Reading distance can reach approximately 5–8 cm for compatible glass microchips and up to 10–15 cm for larger compatible animal tags, depending on the transponder and scanning conditions.
Is this reader suitable for dogs and cats?
Yes. It can be used for dogs, cats, and other animals implanted with compatible FDX-B transponders.
Is this the same as a pet microchip scanner?
Yes. A pet microchip scanner and a pet microchip reader generally refer to the same type of handheld device used to retrieve an implanted microchip ID. On this page, FDX-B Pet Microchip Reader is used to describe the specific protocol and application of this product.
